Description

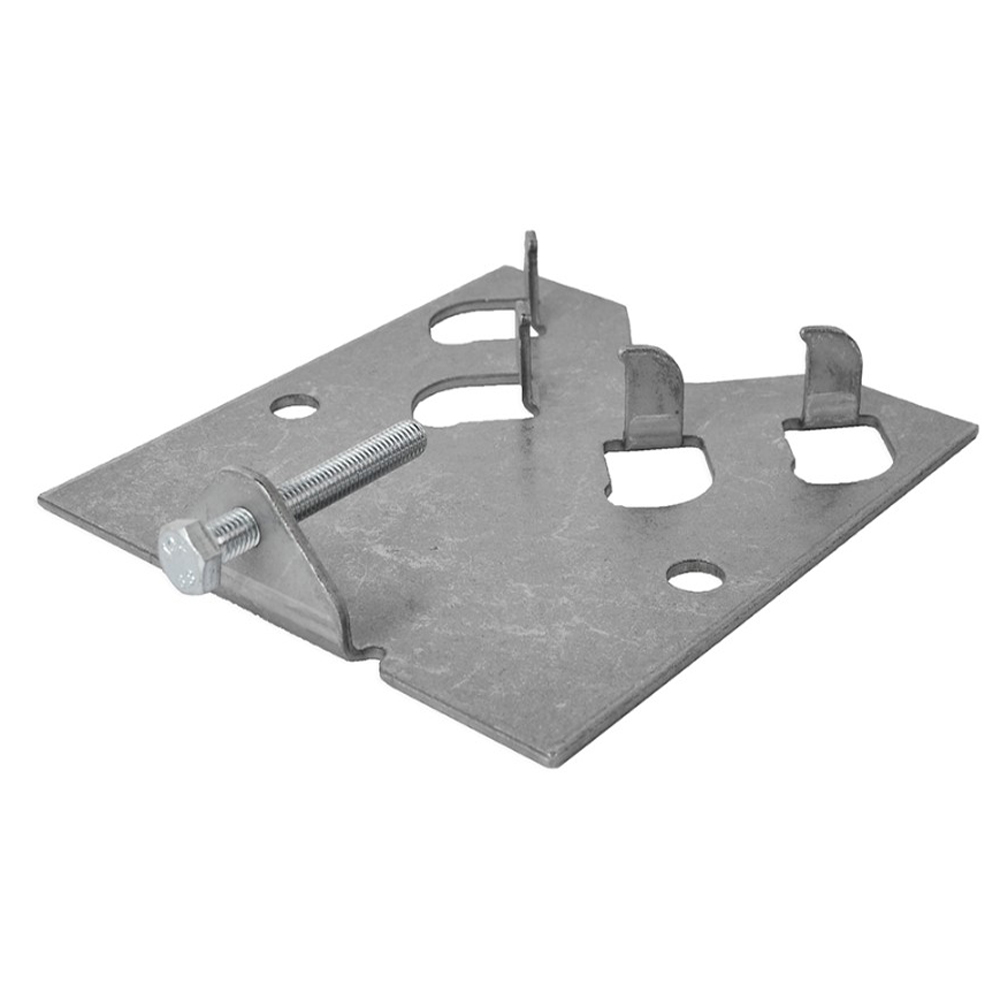

Universal Baseplate manufactured from 3mm coated mild steel that can support round (between 50mm – 140mm dia) and Square (between 50mm x 50mm – 120mm x 120mm) posts. The adjustable bolt at the side of the plate locks the post in place, ensuring it is steady and won – rotate whilst the foundations are being cast. Simply slot the post onto the baseplate between the raised lugs and the M8 bolt supplied. Clamp the post tightly with the bolt using a 13mm spanner until secure and upright. The baseplate and post can then be lowered into the hole and fixed into position.
How to use:
1. Put post in base and tighten fixing
2. Put base and post into a pre-dug hole and ensure post is level and straight
3. Pour concrete and leave to set prior to fitting sign to posts
Supplied with one M8 Hex head 60mm bolt.
Baseplate dimensions (WxDxH): 150x160x32mm
Weight: 450g
